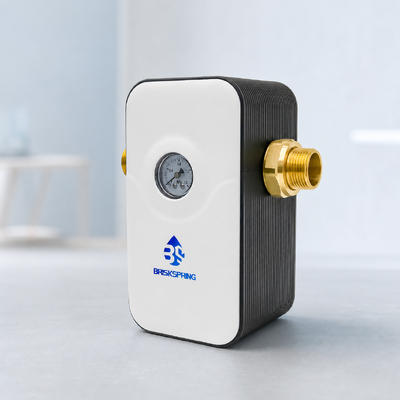

Whole-House Physical Water Descaler and Anti-Scale Conditioner with No Electricity 5000L/H Flow Rate
Product Overview
The BriskSpring RSO-F1-BS is a compact, vertical, in-line physical water descaler designed for whole-house municipal water applications. It combines a visible pressure gauge, H59-1 copper connection fittings and an internal IPSE/SAAS chip structure in a space-saving housing.
This product uses Pure Physical Ion Polarization for scale-control applications. It is a non-salt, non-ion-exchange solution and should not be presented as a resin water softener, a drinking-water purifier or a guaranteed hardness-reduction device.
Key Features
Whole-house physical scale-control solution
Designed for municipal water plumbing systems where scale management is required.
Built-in pressure gauge
Provides a visual reference for line pressure during installation and routine inspection. The gauge does not regulate water pressure.
Pure Physical Ion Polarization
Water passes through the internal IPSE/SAAS chip structure as part of the product’s physical scale-control design.
Compact vertical design
The space-saving form factor is suitable for evaluating at a main water inlet or before selected water-using equipment.
H59-1 copper connectors
Available with 3/4 in or 1 in connection options. Confirm the required thread standard before ordering.
Designed for municipal water
Suitable for residential whole-house water-line projects within the stated operating range
Product Specifications
| Item | Specification |
|---|
| Brand | BriskSpring |
| Model | RSO-F1-BS |
| Product Type | Physical Water Descaler / Anti-Scale Conditioner |
| Working Principle | Pure Physical Ion Polarization |
| Applicable Water | Municipal Water |
| Connector Size | 3/4 in or 1 in |
| Connector Material | H59-1 Copper |
| Applicable Pressure | 0.15–1 MPa |
| Applicable Water Temperature | 0–99°C |
| Maximum Flow Rate | Up to 6 m³/h |
| Product Dimensions | 209 * 136 * 117 mm |
| Net Weight | 1.146 kg |
| Package Dimensions | 330 * 180 * 170 mm |
| Package Weight | 1.923 kg |
Working Principle
The RSO-F1-BS is designed as an in-line physical scale-control unit. Water flows through the internal channel and IPSE/SAAS chip structure, where the product’s physical ion-polarization design is applied.
Scale-control performance can vary with water hardness, temperature, flow rate, pipe conditions and installation location. For this reason, this product should be selected according to the actual water conditions and project requirements.

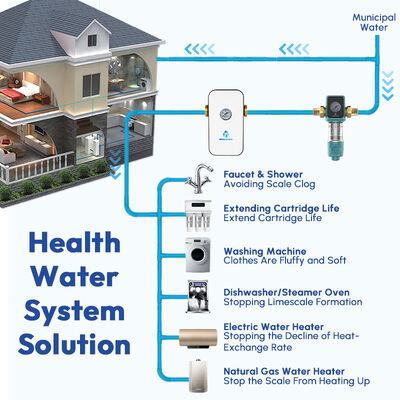

Recommended Applications
Whole-house municipal water inlet systems
Residential apartments, villas and houses
Water-heater and boiler supply lines
Bathroom and kitchen plumbing systems
Water-using equipment where scale-control evaluation is needed
For a whole-house project, installation is commonly evaluated after a sediment pre-filter. This helps reduce the impact of suspended particles on the internal structure.
Installation and Selection Notes
Before selecting the product, please confirm:
Pipe size and thread standard: 3/4 in or 1 in
Municipal water pressure and peak flow
Water hardness, temperature and water-quality condition
Installation space and preferred installation position
Whether a sediment pre-filter is already installed upstream
Destination market and required compliance documents
Why Choose BriskSpring
BriskSpring provides product-selection support for residential and commercial water-treatment applications. For the confirmed model, we can help review connection requirements, installation conditions, packaging requirements and applicable documents for the destination market.
FAQ
Is this a salt-based water softener?
No. This is a physical water descaler and anti-scale conditioner. It is not a salt-regenerated or ion-exchange resin water softener.
Does it remove calcium and magnesium from water?
No. This product is not designed to remove hardness minerals or produce softened water. Customers requiring hardness reduction should select an ion-exchange water-softening system instead.
Can it replace an RO water purifier?
No. It is a scale-control product and does not replace RO filtration, sediment filtration or microbiological treatment.
Where should it be installed?
It is designed for in-line installation on municipal water plumbing. For whole-house use, installation after a sediment pre-filter is commonly evaluated. Final installation should follow actual pipe conditions and local plumbing requirements.
Can you provide certification documents?
Applicable current documents can be checked for the confirmed model and destination market.
